Conduit Clamps (SMART-CLAMPSTM)

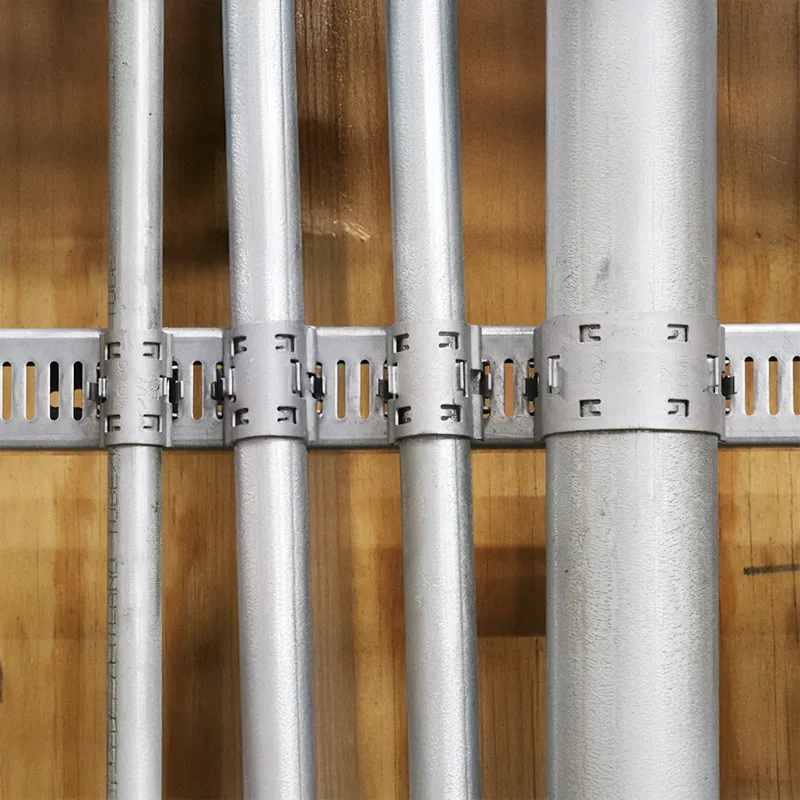

Dakota Systems conduit clamps (Smart-Clamps™) are available in multiple sizes up to 2”. Our Smart-Clamps™ are configured for EMT conduit, Rigid conduit, and Rigid IPS clamps. These easy-to-install conduit clamps are extremely strong with a safe working load of 400lbs, all you need for installation and removal is a flathead screwdriver and a hammer of some sort. Get the job done faster with Dakota Systems and work SMARTER, not harder!

Features & Benefits

  • Available in EMT, Rigid, & Rigid IPS
  • Multiple sizes up to 2”
  • Quick snap-together installation
  • Clean and organized appearance
  • Reduces labor by 10x
  • Easily prefabricated
  • High-grade material
  • UL Listed

Manufacturing Details

  • Material: SAE Austempered Spring Steel
  • Finish: Dakota ProTech™ Wet/Dry: 1,000 hr SST
  • Manufacturer: MAGDADDY, LLC
  • Country of origin: United States (USA)

Rigid Conduit Clamps

Part # Description A – Width B – Height C – Pipe Diameter Max Recommended Load 3D Models
DS-CC-12R-PT 1/2″ Rigid Conduit 1.496″ (38.0mm) 1.583″ (40.2mm) 0.840″ (21.34mm) 400lbs. 3x Safety Factor BIM Files
DS-CC-34R-PT 3/4″ Rigid Conduit 1.496″ (38.0mm) 1.795″ (45.6mm) 1.050″ (26.67mm) BIM Files
DS-CC-1R-PT 1″ Rigid Conduit 1.496″ (38.0mm) 2.035″ (51.7mm) 1.315″ (33.40mm) BIM Files
DS-CC-114R-PT 1 1/4″ Rigid Conduit 1.496″ (38.0mm) 2.397″ (60.9mm) 1.660″ (42.16mm) BIM Files
DS-CC-112R-PT 1 1/2″ Rigid Conduit 1.496″ (38.0mm) 2.633″ (66.9mm) 1.900″ (48.26mm) BIM Files
DS-CC-2R-PT  2″ Rigid Conduit Column 3 Value 6  3.110″ (79.0mm) 2.375″ (60.33mm) BIM Files

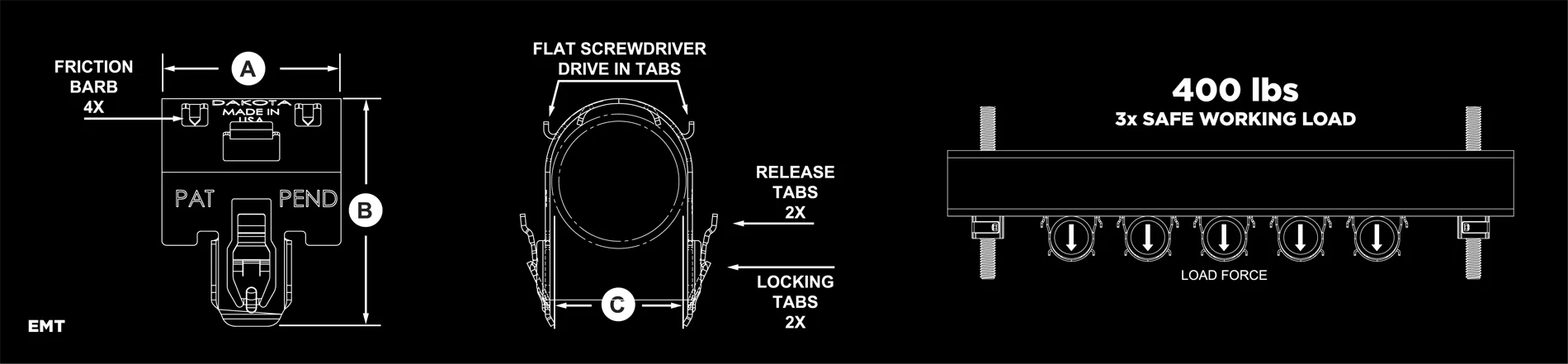

EMT Conduit Clamps

Part # Description A – Width B – Height C – Pipe Diameter Max Recommended Load 3x Safety Factor 3D Models
DS-CC-12EMT-PT 1/2″ EMT Conduit Clamp 1.496″ (38.0mm) 1.433″ (36.4mm) 0.706″ (17.9mm) 400lbs BIM Files
DS-CC-34EMT-PT 3/4″ EMT Conduit 1.496″ (38.0mm) 1.657″ (42.1mm) 0.922″ (23.4mm) 350lbs BIM Files
DS-CC-1EMT-PT 1″ EMT Conduit 1.496″ (38.0mm) 1.903″ (48.3mm) 1.163″ (29.5mm) 325lbs BIM Files
DS-CC-114EMT-PT 1 1/4″ EMT Conduit 1.496″ (38.0mm) 2.256″ (57.3mm) 1.510″ (38.4mm) 400lbs BIM Files
DS-CC-112EMT-PT 1 1/2″ EMT Conduit 1.496″ (38.0mm) 2.486″ (63.1mm) 1.740″ (44.2mm) 400lbs BIM Files
DS-CC-2EMT-PT 2″ EMT Conduit 1.496″ (38.0mm) 2.935″ (74.5mm) 2.197″ (55.8mm) 400lbs BIM Files

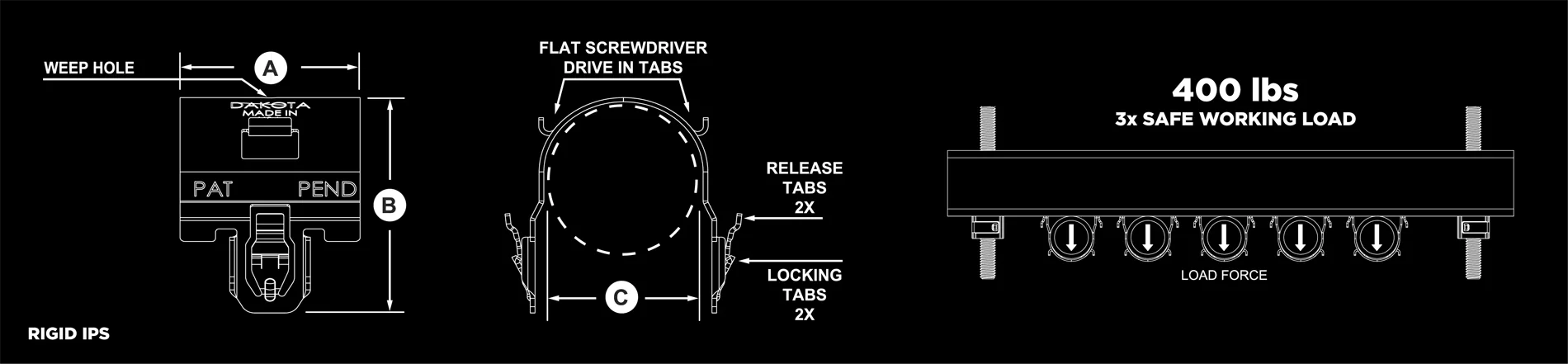

Rigid IPS Conduit Clamps

Part # Description A – Width B – Height C – Pipe Diameter Max Recommended Load 3D Models
DS-PC-12IPS-PT 1/2″ Rigid IPS Clamp 1.496″ (38.0mm) 1.579″ (40.1mm) 0.840″ (21.34mm) 400lbs 3x Safety Factor BIM Files
DS-PC-34IPS-PT 3/4″ Rigid IPS Clamp 1.496″ (38.0mm) 1.789″ (45.4mm) 1.050″ (26.67mm) BIM Files
DS-PC-1IPS-PT 1″ Rigid IPS Clamp 1.496″ (38.0mm) 2.031″ (51.6mm) 1.315″ (33.40mm) BIM Files
DS-PC-114IPS-PT 1 1/4″ Rigid IPS Clamp 1.496″ (38.0mm) 2.391″ (60.7mm) 1.660″ (42.16mm) BIM Files
DS-PC-112IPS-PT 1 1/2″ Rigid IPS Clamp 1.496″ (38.0mm) 2.630″ (66.8mm) 1.900″ (48.26mm) BIM Files
DS-PC-2IPS-PT 2″ Rigid IPS Clamp 1.496″ (38.0mm) 3.110″ (79.0mm) 2.375″ (60.33mm) BIM Files

HOW TO USE SMART-CLAMPSTM

STEP 1

To install, insert the tabs of the Smart-ClampTM into the vertical slot of your Smart-StrutTM.

STEP 2

Push into the strut slots until it clicks in place and then put a flathead screwdriver to one of the side tabs and hammer once to ensure engagement.

STEP 3

To remove, push the locking tabs inward with a flathead screwdriver and pry out to disengage.
