Smart-Caps™
Our Smart-Caps™ are essentially innovative back-to-back strut channels that double the capacity of your strut system with top and bottom conduit mounting. These Smart-Caps™ can be used with standard strut channel material, they simply click into the open side of the strut channel, instantly turning your strut into a back-to-back welded strut channel. To fully benefit from this product, you must use our Smart-Clamps™ with it.
Features & Benefits
- Compatible with standard strut channel
- Ready-to-use with Dakota Smart-Clamps™
- Innovative back-to-back strut channel

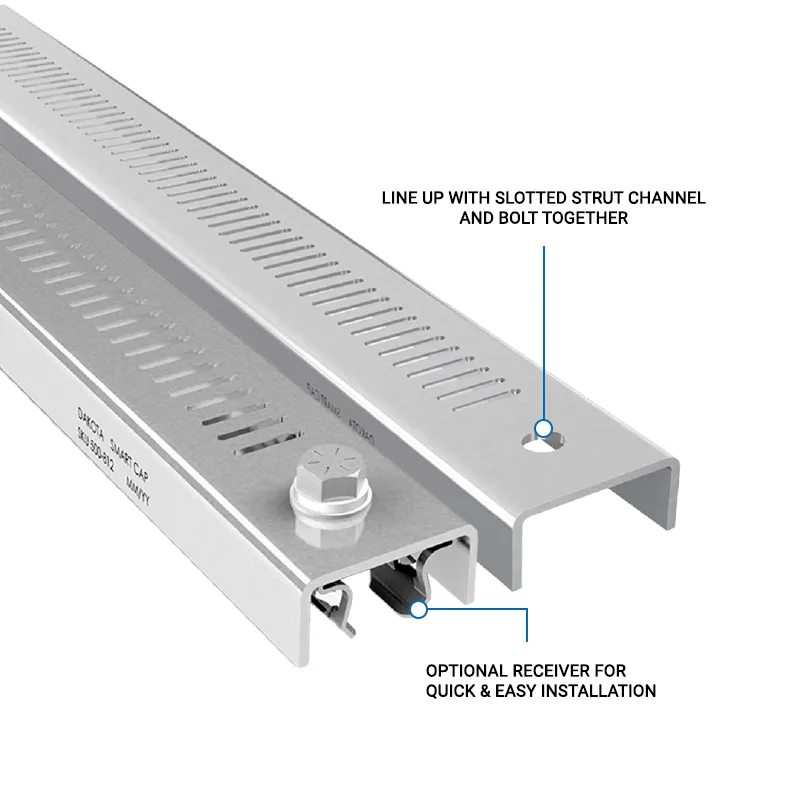

- Quick click-in installation with optional receiver
- Reduces labor by 10x
- High-strength yield
- UL Listed
Manufacturing Details
- Material: 12 Gauge Structural Steel, Grade 50
- Finish: Pre-galvanized Zinc
- Manufacturer: MAGDADDY, LLC
- Country of origin: United States (USA)
| Part # | Description | Gauge | Hole to Hole Center Distance | Distance Between Slots | Slot Length | Overall Length | Hole Diameter | Overall Width | Inside Width | Inside Height | 3D Models |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DS-CAP12-14-PG | 14″ Dakota Smart Cap | 12 GA. | 22″ Centers (55.8mm) | 31.5″ (8mm) | 0.787″ (20mm) | 1′ 2″ (14″) | 13/32″ (11.1mm) | 1.91″ (48.5mm) | 1.7″ (43.2mm) | 13/16″ (20.6mm) | BIM Files |
| DS-CAP12-24-PG | 24″ Dakota Smart Cap | 2′ (24″) | BIM Files | ||||||||
| DS-CAPTR12-14-PG | 14″ Dakota Smart-Cap with Threaded Receiver | 1’2″ (14″) | BIM Files | ||||||||
| DS-CAPTR12-24-PG | 14″ Dakota Smart-Cap with Threaded Receiver | 2′ (24″) | BIM Files |
Typical Assembly of a Double Sided
TRAPEZE SYSTEM
